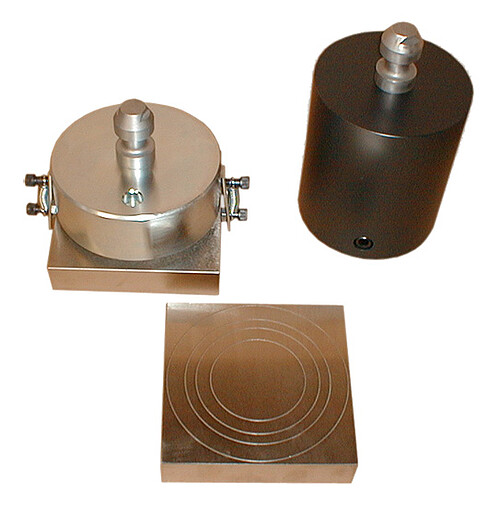

Compression Machine Accessories: 6" (152 mm) Cube Test Set

Used for testing 6” (152 mm) concrete cubes and cylinders in compression

The platens bearing block is 6.5” (152 mm) square, through hardened to HRC 55 or greater, plane to .0005” (.012 mm) in any 6” (152 mm) area, has concentric circles for easier centering of cylinders and is hard nickel plated for wear and corrosion resistance.

Kit includes; spherical seated platen assembly and spacer.

Note: A 6.5” (152 mm) square lower platen is supplied with MA-0113 cube set for use in CM-2500 series machines.

Meets ASTM C-39 and AASHTO T-22 specifications.

Name / Part Number Price QTY
MA-01116" Cube Test Set, CM-3000$1110.50
MA-01136" Cube Test Set, CM-2500$1598.00
MA-01166" Cube Test Set, 4000/5000$1163.00
