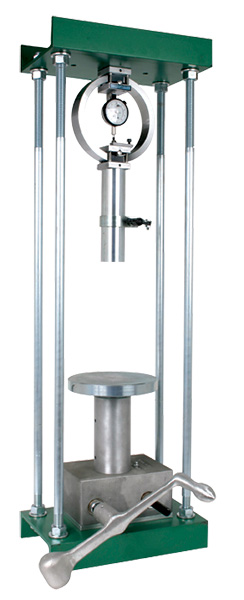

CBR Test Press, Mechanical

SA-2000

The CBR (California Bearing Ratio) loading press uses a two-position mechanical jack to provide steady test speeds, as well as rapid travel of the platen for positioning of the sample. Includes a 11,000 lbf (48.8kN) calibrated load ring, a penetration piston, a 1.000" x .001 dial indicator and a dial indicator bracket, Overall dimensions: 18" x 12" x 34" (45.8 x 30.5 x 86.4cm).

Standards

Shipping Weight: 132.00 lbs.

  Price QTY
 $2310.00

Accessories

Name / Part Number Price QTY
CBR Mold, 6" SA-0110CBR Mold, 6"$171.00
CBR Spacer Disc SA-2015CBR Spacer Disc$112.00
LBR Mold, 6"SA-0109-LLBR Mold, 6"$148.50
LBR Spacer Disc SA-2015-LLBR Spacer Disc$89.00
Swell Plate SA-2017Swell Plate$122.00
Surcharge Weight, Solid SA-2030Surcharge Weight, Solid$49.70
Surcharge Weight, Slotted SA-2031Surcharge Weight, Slotted$72.00
Filter Paper SA-2019Filter Paper$15.00
Penetration Piston SA-2013Penetration Piston$70.00
Filter Screen SA-2016Filter Screen$10.00
Tripod Attachment SA-2018Tripod Attachment$58.00
Dial Indicator 1.000" x .001" SA-2020Dial Indicator 1.000" x .001"$115.00
Magnet Holder with Swivel Adapter Yoke SA-2021Magnet Holder with Swivel Adapter Yoke$90.75
Cutting Edge SA-2032Cutting Edge$48.00
